NSN 9390-01-285-9621
Part Details | NONMETALLIC ANGLE
9390-01-285-9621 A structural shape fabricated from nonmetallic material(s) resembling the letter "L" in cross-sectional form. It may have a reinforcing agent(s) and backing. Excludes SEAL, NONMETALLIC ANGLE.
Alternate Parts: 1M2517, 1M-2517, 1M2517, 1M-2517, 9390-01-285-9621, 01-285-9621, 9390012859621, 012859621
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | SEP 23, 1988 | 01-285-9621 | 30217 ( NONMETALLIC ANGLE ) |
REFERENCE DRAWINGS & PICTURES
ANGLE

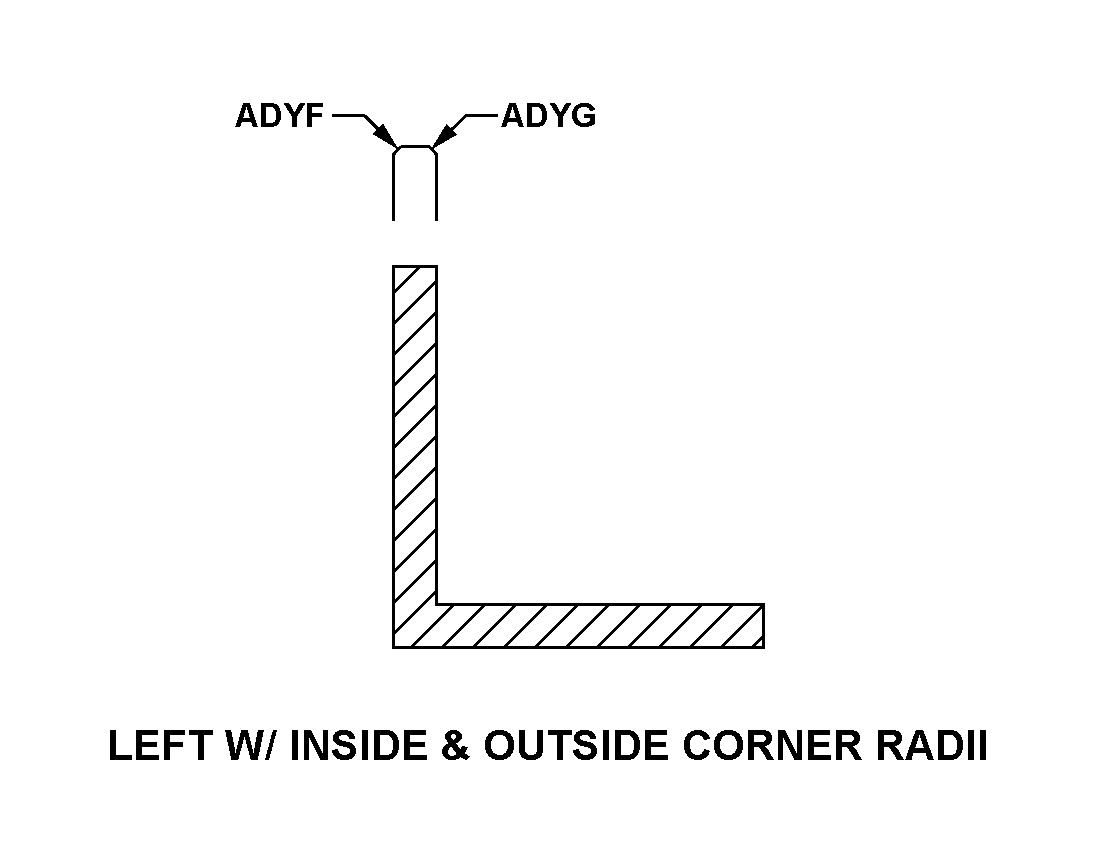

LEFT W/INSIDE & OUTSIDE CORNER RADI

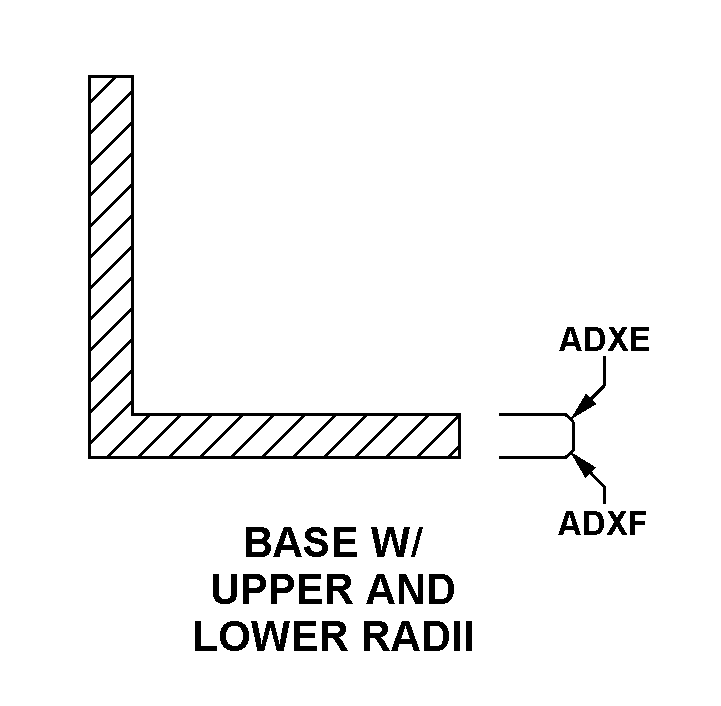

BASE W/UPPER AND LOWER RADIUS
Cross Reference | NSN 9390-01-285-9621
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1M-2517 | 76301 | BOEING COMPANY, THEDBA BOEING |
| 1M-2517 | 29321 | TRANSTAR METALS CORP |
Technical Data | NSN 9390-01-285-9621
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | ANGLE |
| OVERALL HEIGHT | 1.700 INCHES NOMINAL |
| OVERALL WIDTH | 2.800 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.125 INCHES NOMINAL |
| BASE FLANGE THICKNESS | 0.125 INCHES NOMINAL |
| FILLET RADIUS WHERE LEFT FLANGE JOINS BASE FLANGE | 0.250 INCHES NOMINAL |
| OUTER RADIUS WHERE LEFT FLANGE JOINS BASE FLANGE | 0.032 INCHES NOMINAL |
| LEFT-SIDE FLANGE TIP STYLE | LEFT W/INSIDE & OUTSIDE CORNER RADI |
| LEFT SIDE FLANGE TOP OUTER RADIUS | 0.032 INCHES NOMINAL |
| LEFT SIDE FLANGE TOP INNER RADIUS | 0.032 INCHES NOMINAL |
| BASE FLANGE TIP STYLE | BASE W/UPPER AND LOWER RADIUS |
| RIGHT FLANGE INNER SIDE RADIUS AT TOE | 0.032 INCHES NOMINAL |
| RIGHT FLANGE OUTER SIDE RADIUS AT TOE | 0.032 INCHES NOMINAL |
| NONMETALLIC HARDNESS RATING | 30.0 NOMINAL SHORE DUROMETER A |
| MINIMUM TENSILE STRENGTH | 500 POUNDS PER SQUARE INCH |
| ENVIRONMENTAL PROTECTION | CORROSION AND OIL RESISTANT AND LOW TEMPERATURE AND HEAT DRY AND WEATHER RESISTANT |
| SPECIAL FEATURES | SILICONE RUBBER, AMS 3207 |
