NSN 9390-01-311-1127
Part Details | NONMETALLIC ANGLE
9390-01-311-1127 A structural shape fabricated from nonmetallic material(s) resembling the letter "L" in cross-sectional form. It may have a reinforcing agent(s) and backing. Excludes SEAL, NONMETALLIC ANGLE.
Alternate Parts: 12345111, 9390-01-311-1127, 01-311-1127, 9390013111127, 013111127
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | NOV 19, 1989 | 01-311-1127 | 30217 ( NONMETALLIC ANGLE ) |
REFERENCE DRAWINGS & PICTURES

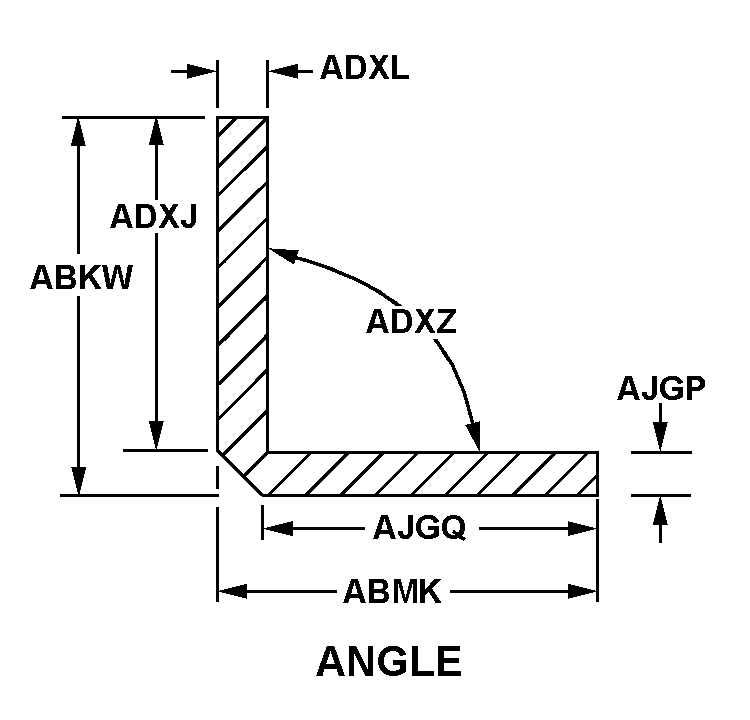

ANGLE
LEFT SQUARE END
BASE SQUARE END
Cross Reference | NSN 9390-01-311-1127
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12345111 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 9390-01-311-1127
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | ANGLE |
| OVERALL HEIGHT | 2.000 INCHES NOMINAL |
| OVERALL WIDTH | 2.000 INCHES NOMINAL |
| LEFT SIDE FLANGE HEIGHT | 1.500 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.500 INCHES NOMINAL |
| BASE FLANGE THICKNESS | 0.500 INCHES NOMINAL |
| BASE FLANGE WIDTH | 1.500 INCHES NOMINAL |
| LEFT INSIDE ANGLE IN DEG | 90.0 |
| LEFT-SIDE FLANGE TIP STYLE | LEFT SQUARE END |
| BASE FLANGE TIP STYLE | BASE SQUARE END |
| LENGTH | 12.500 INCHES NOMINAL |
| MATERIAL | RUBBER CHLOROPRENE CLASS CR |
| PHYSICAL FORM | SOLID |
| NONMETALLIC HARDNESS RATING | 65.0 MINIMUM SHORE DUROMETER A AND 75.0 MAXIMUM SHORE DUROMETER A |
| ENVIRONMENTAL PROTECTION | FIRE RETARDANT AND FLUID RESISTANT AND LOW TEMPERATURE |
| SPECIAL FEATURES | COMPRESSION SET |
