NSN 9905-00-538-0555
Part Details | MARKER BAND
9905-00-538-0555 An item cut to a specific length suitable for wrapping around a cable, pipe, wire, wire rope and the like. It is secured by crimping, slot and tongue, or similar method of fastening. It is intended to provide identification. It may be blank, specifically color coded, or inscribed with information. Excludes TAG, MARKER.
Alternate Parts: 047920232675, 0479-202-3267-5, 9905-00-538-0555, 00-538-0555, 9905005380555, 005380555
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 99 | SEP 25, 1974 | 00-538-0555 | 30536 ( BAND, MARKER ) |

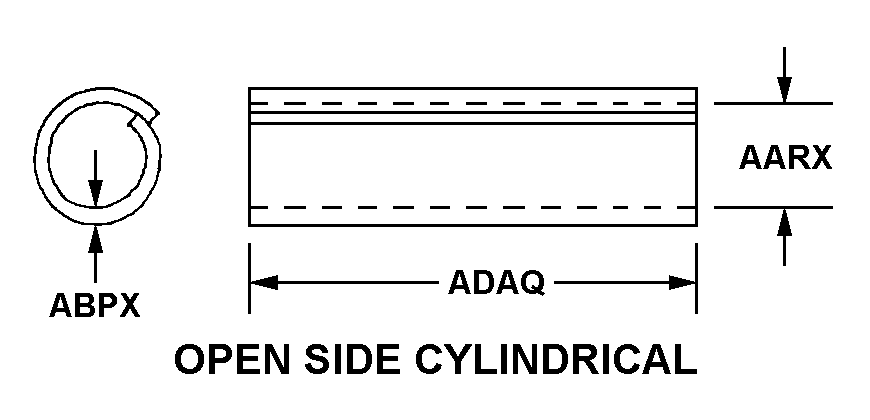

REFERENCE DRAWINGS & PICTURES
OPEN SIDE CYLINDRICAL
Cross Reference | NSN 9905-00-538-0555
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0479-202-3267-5 | 15942 | USACECOM INTELLIGENCE ELECTRONICWARFARE SENSORS DIRECTORATE |
Technical Data | NSN 9905-00-538-0555
| Characteristic | Specifications |
|---|---|
| INSCRIPTION | W5P4 |
| STYLE DESIGNATOR | OPEN SIDE CYLINDRICAL |
| INSIDE DIAMETER | 0.620 INCHES NOMINAL |
| BODY LENGTH | 1.000 INCHES NOMINAL |
| FEATURES PROVIDED | LEGEND |
| FSC APPLICATION DATA | TELEPHONE MONITOR SET |
